Desktop Power Supplies

Desktop power adapters are indispensable as a source of DC voltage for an entire range of electronic devices. The provided power of 12 to 200W and output voltage from 5 to 56V covers the requirements of all typical uses. The principal areas of use are telecommunications, payment terminals and cashier systems, neon signs, diagnostic equipment, security systems and others.

SYS1001-T2 6W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12V, power 6W, current 0.5A. Standard cable length 1.4m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

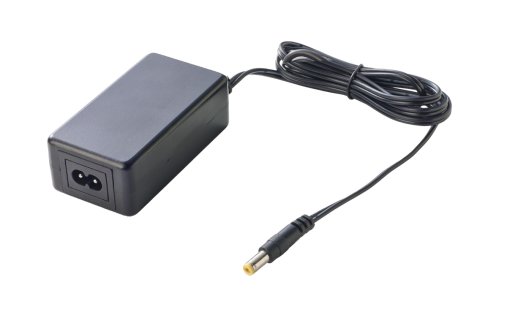

SYS1001-T2 12W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12V, power 12W, current 1A. Standard cable length 1.4m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

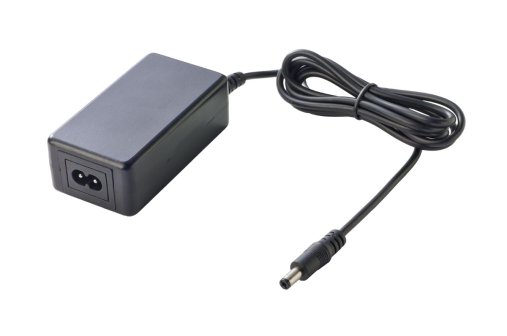

SYS1544-T2 24W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5-24V, power 24W, current 1A - 3A. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

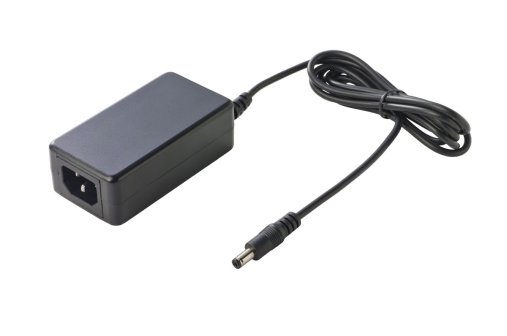

SYS1544-T3 24W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 5-24V, power 24W, current 1A - 3A. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable".

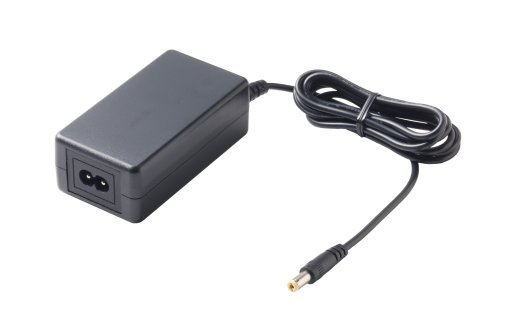

SYS1588-T2 30W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5-24V, power 20-30W, current 1.25A - 4A. Standard cable length 1.5m or 1.8m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

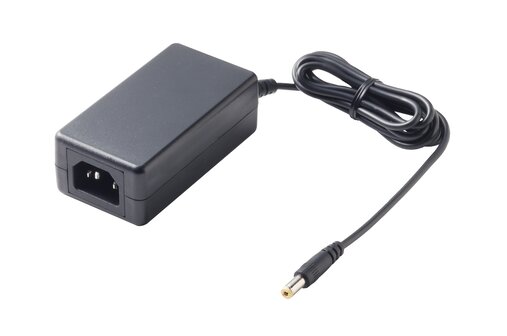

SYS1588-T3 30W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 5-24V, power 20W or 30W, current 1.25A - 4A. Standard cable length 1.5m or 1.8m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable".

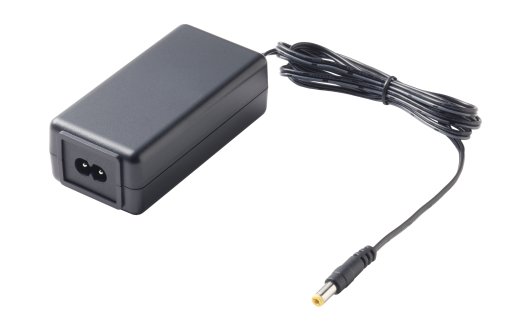

SYS1546-T2 36W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12-24V, power 36W, current 1.5A - 3A. Standard cable length 1.4m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

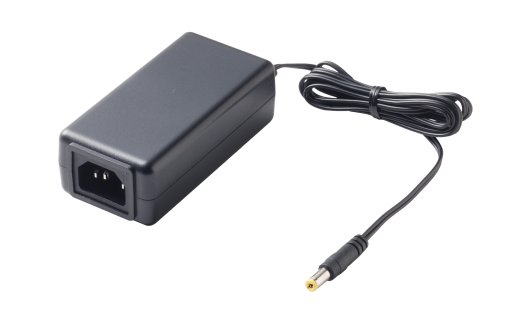

SYS1546-T3 36W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12-24V, power 36W, current 1.5A - 3A. Standard cable length 1.4m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable".

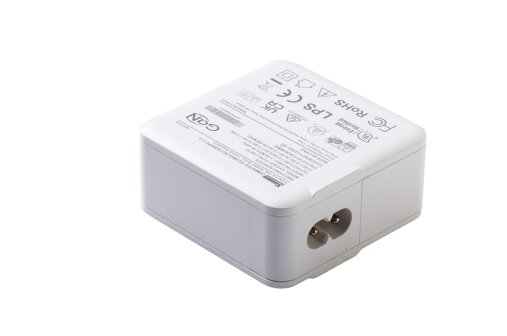

SYS1621-T2 60W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5-20V, power 15-60W, current 3A. USB-C inlet connector. With support for fast charging (PD) and GaN technology. Compatible with iOS and Android. Suitable mains cable: IEC 320 C7 "∞".

SYS1548-T2 65W series

Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12-24V, power 50W or 65W, current 2.08A - 5.42A. Standard cable length 1.2m or 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C7 "∞".

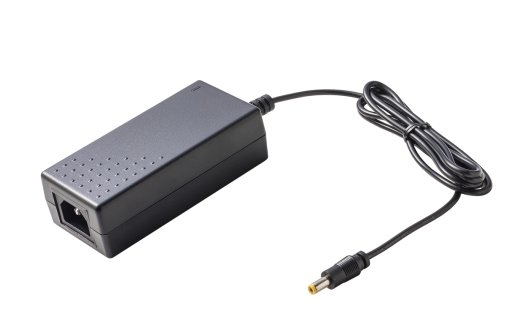

SYS1548-T3 65W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12-24V, power 36W, current 1.5A - 3A. Standard cable length 1.4m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable".

SYS1649-T3 65W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 48V, power 65W, current 1.35A. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable".

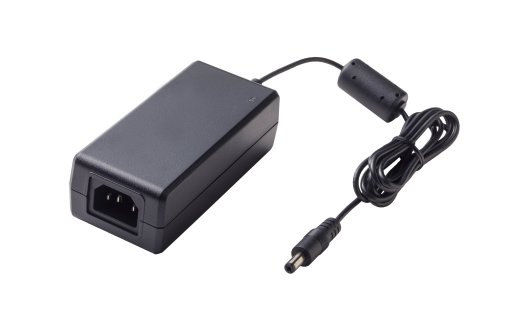

ATS-065W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 48V, power 65W, output current 1.36A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

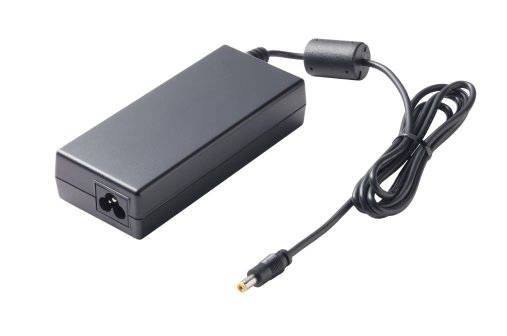

SYS1575-90xx-M3 series

Desktop power supplies with AC input M3, input voltage 90-264V, output voltage 12V or 24V, power 90W, current 3.75A or 7.5A. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C5 "Mickey Mouse".

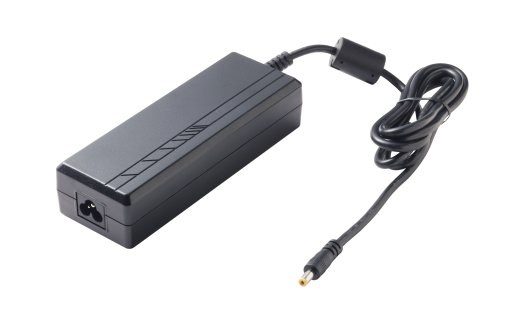

SYS1576-130xx-M3 series

Desktop power supplies with AC input M3, input voltage 90-264V, output voltage 12V or 24V, power 120W, current 5A or 10A. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C5 "Mickey Mouse".

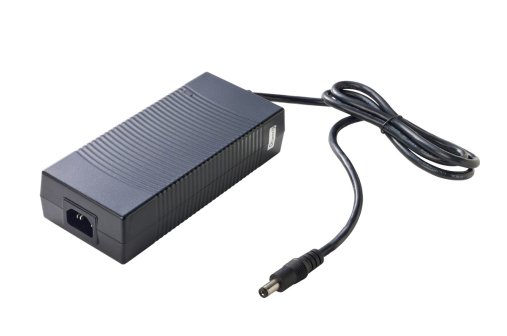

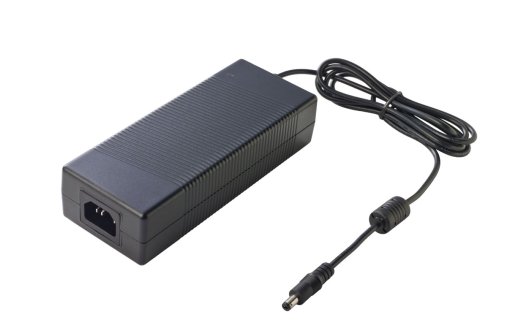

STD-120W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V; 24V or 48V, power 108W or 120W, output current 2.5A; 5A or 9A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

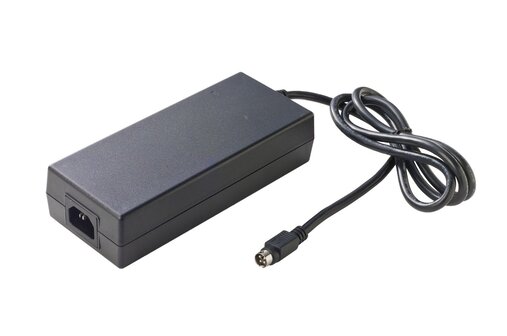

ATS-160W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V or 24V, power 150W or 160W, output current 6.67A or 12.5A. Connector 4PIN DIN, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

ATS-200W series

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V; 24V or 48V, power 192W or 200W, output current 4.17A; 8.3A or 16A. Connector 2.5x5.5 or 4PIN DIN, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".
